Simple inverter

Back

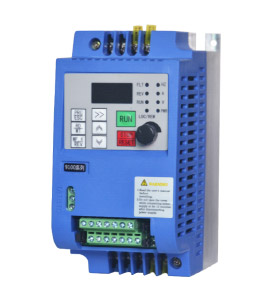

Product name:Simple inverter
Series:9100
Application:General
power range:220V/380V、0.75KW-2.2KW
  • Specifications
  • details
  • 经典案例
  • 资料下载

 First, the product introduction
   Product Name: Universal Mini Inverter
   Product brand: Weiken Electric
   Voltage level: single phase 220V

Application industry: textile machinery, plastic machinery, food machinery, electrical machinery, CNC machine tools, ceramic machinery, rubber machinery, printing machinery, wire drawing machinery, winding machines and other industries.

Second, the product description
The universal mini frequency converter adopts advanced control method to realize high torque, high precision and wide speed drive, which can meet various requirements of general frequency converters. It is a product that combines customers' general needs with industry requirements and provides customers with products. Practical PID regulator, simple PLC, programmable input and output terminal control, remote synchronous control, pulse frequency reference and other special frequency conversion control and other powerful functions, for the vast majority of equipment manufacturing and automation engineering Customers provide highly integrated, all-in-one solutions that are highly valuable for reducing system costs and increasing system reliability.

Third, the general mini inverter features
1. Three control modes of V/F control, vector control and output torque control are available;
2, with speed potentiometer, the panel can be connected externally;
3. Built-in RS485 communication interface;
4, 2 analog inputs, 1 analog output channel;
5, 16 speed control;
6, a variety of running commands / frequency given channel optional;
7. Built-in PID controller can realize closed loop constant pressure, constant temperature and constant tension system control;
8. Some or all of the keys can be locked (the analog potentiometer is not locked);
9, relay normally open and normally closed and two high configuration output, 100 ways to choose;
10, 5 digital optical isolated input, 100 ways to choose;
11. It has the function of textile swing frequency and can be widely used in various textile equipments;
12, built-in user timer / counter;

Product name:Simple inverter
Product name:Weiken Electric

Series:9100 series

Product model:WK9100-1T-00150G -

WK9100-3T-00220G

Voltage level:220V/380V
Power range :0.75kw-2.2kw
Application :Simple
Product size:W:80mm H:160mm D:135mm
Installation size:W1:76mm H1:150mm
