220V 0.75KW/1.5KW/2.2KW VFD

Back

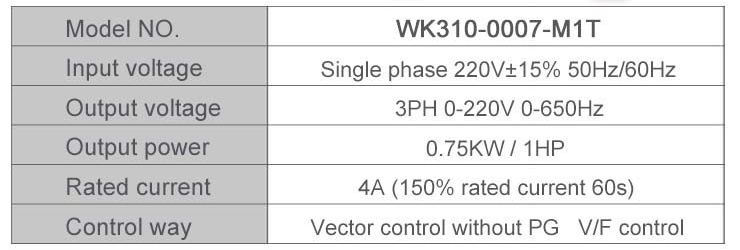

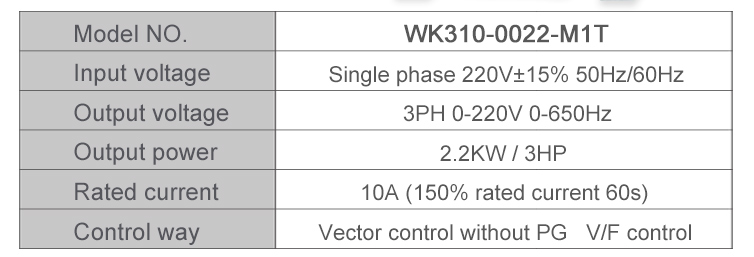

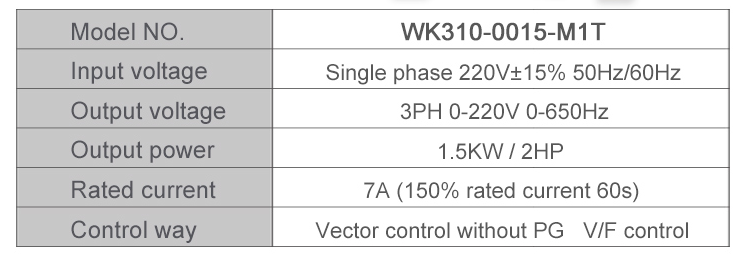

Series:WK310
Power:0.75KW/1.5KW/2.2KW
Input:Single phase 220V 50/60Hz
Output:Three phase 0-220V 0-650Hz
Rated current:4A/7A/10A
  • Videos
  • Details
  • Cases
  • Purchase

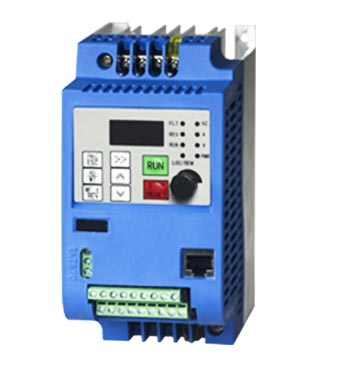

220V 0.75KW/1.5KW/2.2KW VFD ac drive for motor


• Our products have excellent performance.

A.  0.5Hz can provide 150% starting torque;

B.  Overload capacity: 150% rated current 60s; 180% rated current 10s;

C.  Carrier frequency: 0.5k ~ 15.0kHz.



• Our products have powerful functions.

A. PID control function — Closed-loop automatic control technology;

B. Multi-speed control function — 8-speed control;

C. Multiple Protection of Motor—Short-circuit, phase-absence, over-current, over-voltage, under-voltage, over-heat, over-load protection, etc.



• Our products have a comprehensive configuration.

A. 17 functional terminals—Hundreds of functions can be realized through different combinations

B. Relay output—More complex linkage control functions can be realized.

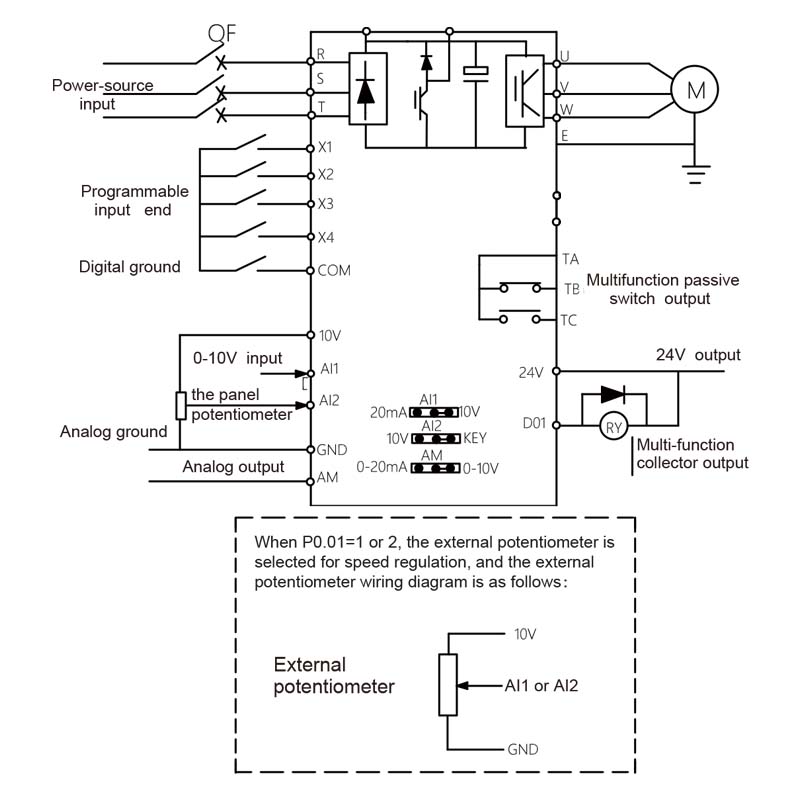

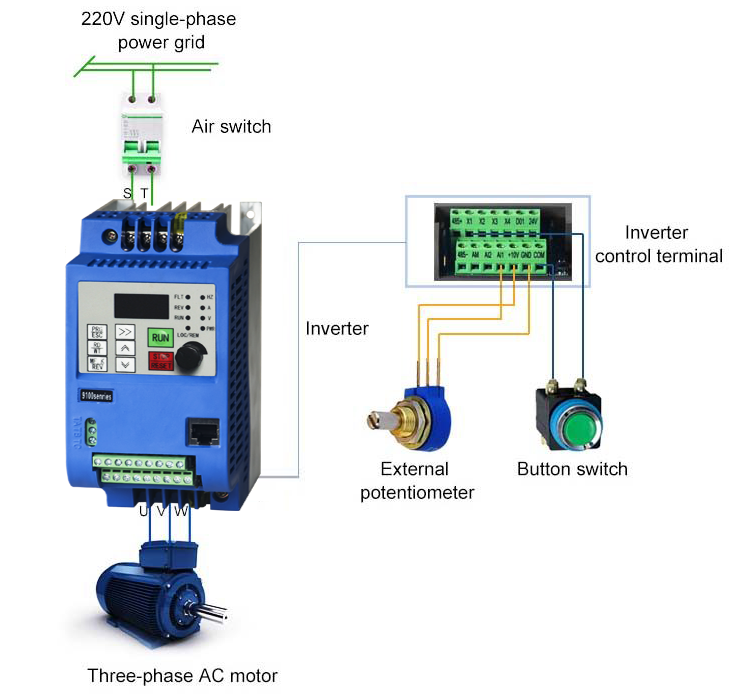

外贸主图速卖通_03.jpgblob.pngblob.pngblob.pngblob.png9100-外贸标准接线无485

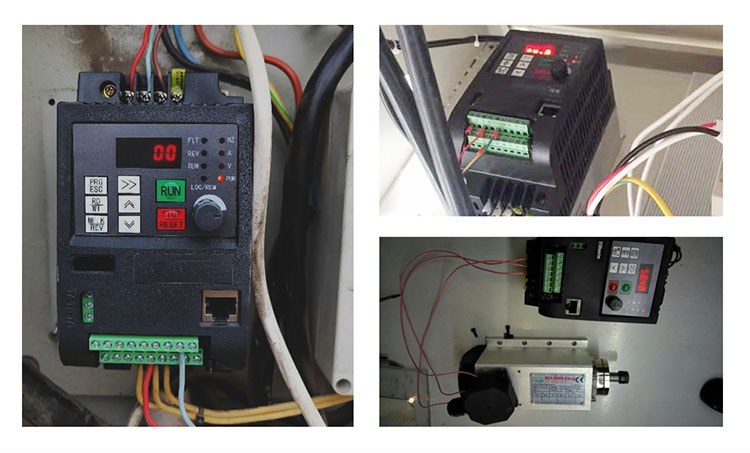

案例
