Pump special inverter

Back
Series:WK600
Power:0.75kw-630KW
Input:Single phase 220V 50/60Hz/ Three phase 380V 50/60Hz
Output:Three phase 0-500Hz 0-220V/380V
  • Details
  • Cases
  • Purchase

• Our products have excellent performance.

A. 0.5Hz can provide 150% starting torque.

B. Torque response speed less than 20 ms.

C. Built-in PID control function, can realize closed-loop control of water pressure, and has PID disconnection detection and water shortage protection.

D. With automatic sleep and automatic wake-up function, the pump can be automatically stopped when there is no need for water for a long time. The pump can be started automatically when there is a demand for water. No manual operation is required throughout the entire process.



• Our products have powerful functions.

A. Current limiting function—Avoiding Frequent Over-current Alarm of Frequency Converter.

B. Power dip ride through—Instantaneous power outage time converter will not shut down.

C. Simple PLC Programming—It can achieve up to 16-segment speed operation.

D. Multiple Protection of Motor—Short-circuit, phase-absence, over-current, over-voltage, under-voltage, over-heat, over-load protection, etc.



• Our products have a comprehensive configuration.

A. Built-in brake unit—Brake function can be realized by matching brake resistance

B. 18 functional terminals—Hundreds of functions can be realized through different combinations

C. Standard RS485 communication—It can communicate and monitor remotely with PLC or PC.

D. Relay output—More complex linkage control functions can be realized.



• Details of our products.

  1. Self-regulating potentiometer
  2. High quality Components
  3. DC Heat Dissipating Fan
  4. Isolated aluminium heat dissipation base

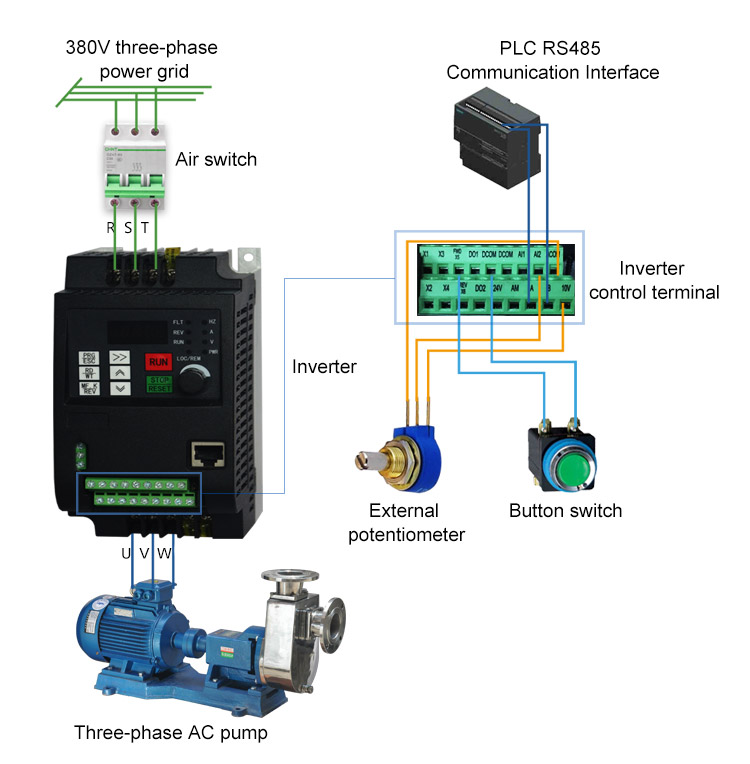

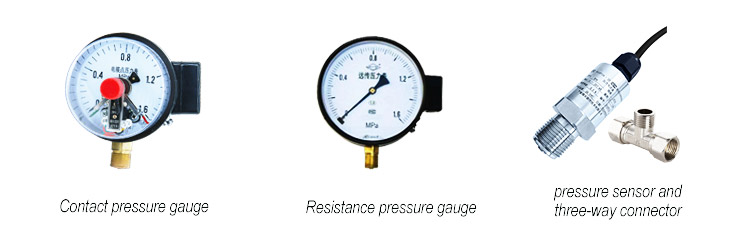

迷你_380.jpg发货清单 压力表.jpg水泵380-0.75kw_01.jpg迷你型接线图.jpg
