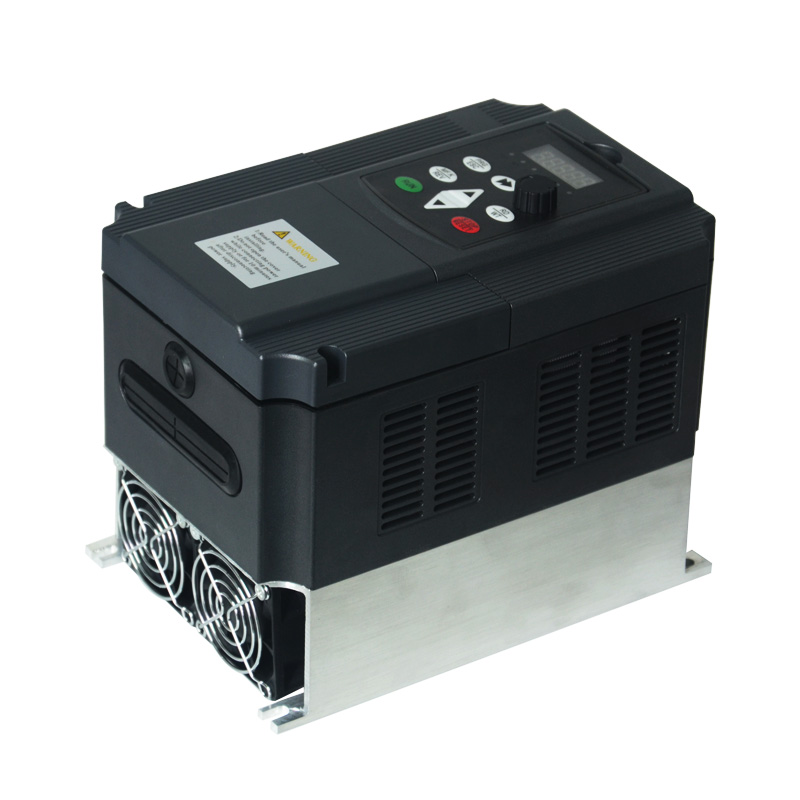

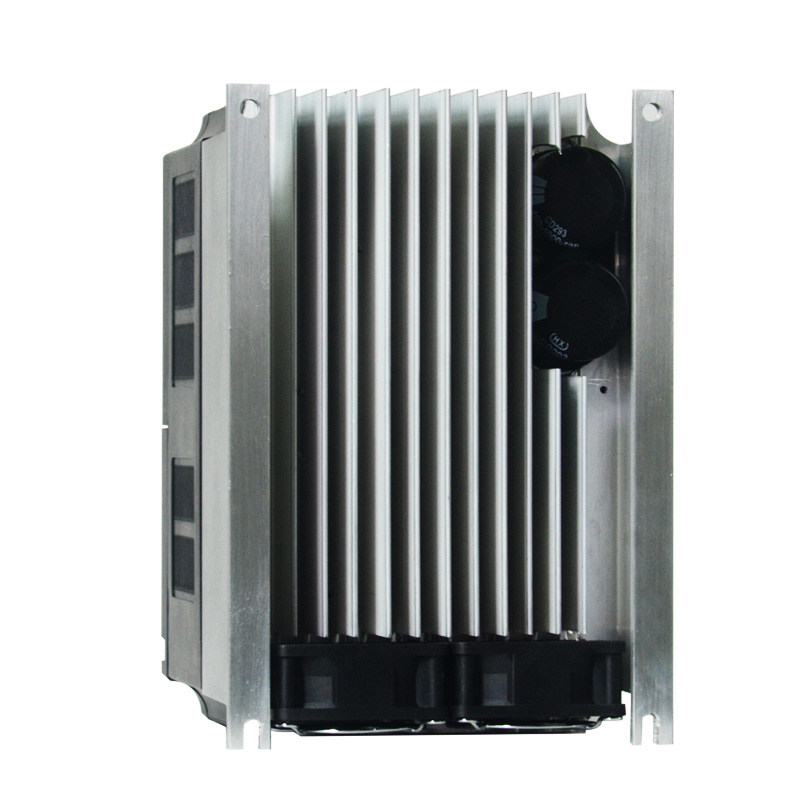

Solar 220V special inverter 0.75-5.5kw

Solar 220V special inverter

• Our products have excellent performance.

A.  0.5Hz can provide 150% starting torque;

B.  Overload capacity: 150% rated current 60s; 180% rated current 10s;

C.  Carrier frequency: 0.5k ~ 15.0kHz.

• Our products have powerful functions.

A. PID control function — Closed-loop automatic control technology;

B. Multi-speed control function — 8-speed control;

C. Multiple Protection of Motor—Short-circuit, phase-absence, over-current, over-voltage, under-voltage, over-heat, over-load protection, etc.

• Our products have a comprehensive configuration.

A. 17 functional terminals—Hundreds of functions can be realized through different combinations

B. Relay output—More complex linkage control functions can be realized.

● Input and output characteristics

 220V type

Input voltage range: DC 200V-400V(best for 300V-320V) or Single phase 220V±15% 50/60Hz
Output voltage range: AC Three phase 0-220V 0-650Hz

220V 0.75-5.5KW
