Single-phase 220V to 3-phase 380V inverter 0.75-5.5kw

Back

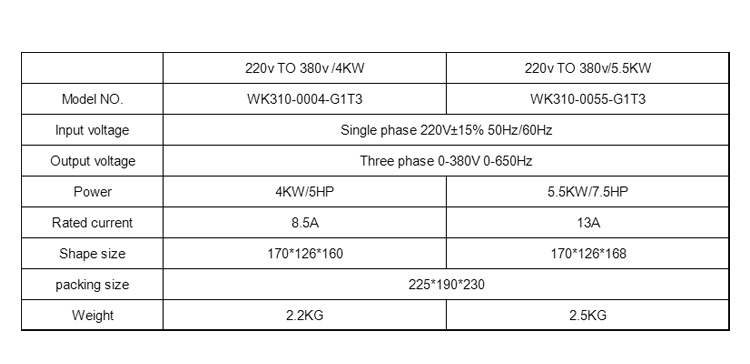

Series:WK310
Power:0.75KW-5.5KW
Input:Single phase 220V 50/60Hz
Output:Three phase 0-380V 0-650Hz
  • Details
  • Cases
  • Purchase

Single-phase 220V to 3-phase 380V inverter


• Our products have excellent performance.

A.  0.5Hz can provide 150% starting torque;

B.  Overload capacity: 150% rated current 60s; 180% rated current 10s;

C.  Carrier frequency: 0.5k ~ 15.0kHz.



• Our products have powerful functions.

A. PID control function — Closed-loop automatic control technology;

B. Multi-speed control function — 8-speed control;

C. Multiple Protection of Motor—Short-circuit, phase-absence, over-current, over-voltage, under-voltage, over-heat, over-load protection, etc.



• Our products have a comprehensive configuration.

A. 17 functional terminals—Hundreds of functions can be realized through different combinations

B. Relay output—More complex linkage control functions can be realized.


升压4参数_01.jpg9100-外贸标准接线无485
