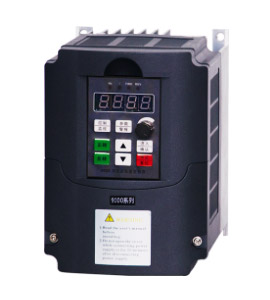

General purpose 0.75kw-5.5kw high performance vector inverter

Back
Product name:Universal high performance vector inverter
Series:9000
Application:General
power range:220V/380V、0.75kw-5.5KW
  • 产品详情
  • 规格参数
  • 经典案例
  • 资料下载
First, the product introduction
   Product Name: Universal High Performance Vector Inverter
   Product brand: WeiKen
   Voltage level: 220V/380V


Second, the application note
It is applied to high-end/utilization schemes of foreign inverters such as freight elevators and cranes. High-torque, high-precision, wide-speed drive is realized by advanced control methods, which can meet various requirements of general-purpose inverters. Products that combine the common needs of customers with industry requirements, provide high-integration integrated solutions for equipment manufacturing and automation engineering customers. For textile machinery, plastic machinery, food machinery, electrical machinery, CNC machine tools, ceramics Machinery, rubber machinery, printing machinery, wire drawing machinery and other industries are ideal for supporting.


Third, Yanken 0.75KW-5.5KW general vector inverter Features:
1. Three control modes of V/F control, vector control and output torque control are available;
2, built-in standard 485 communication port, can achieve online control with the host computer;
3, small size, easy to install;
4, with speed potentiometer, the panel can be connected;
5, built-in synchronous control, multiple inverters to achieve synchronization and proportional synchronization control;
6, 16 speed control, can be automatically operated;
7, a variety of running commands and frequency given;
8. Some or all of the keys can be locked (the analog potentiometer is not locked);
9, relay normally open and normally closed and two high configuration output, 100 ways to choose;
10, six digital optical  isolated input, 100 ways to choose;
11, 3 analog inputs and one analog output;
12, with textile swing frequency function, can be widely used in a variety of textile equipment;
13, built-in timer / counter
14, built-in PID controller, can achieve closed-loop constant pressure, constant temperature, constant tension system control.
15. At zero speed, it can output 0-100% adjustable torque, with zero-speed brake function, which can be applied to freight elevators, cranes and other high-end applications that replace foreign inverters.
product name:Universal high performance vector inverter
brand:Weiken
Series:9000 series
Model:WK9000-1T-00075G - WK9000-3T-00550G
Voltage level:220V/380V
Power range:0.75kw-5.5kw
Application :general
Product Size:W:126mm H:170mm D:160mm
Installation size:W1:115mm H1:160mm
