Air compressor special inverter

Back

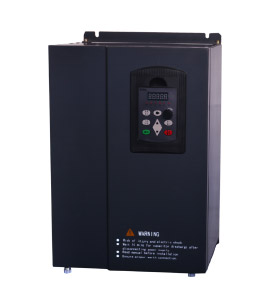

Product name:Air compressor special inverter
Series:9600
Application:Air compressor special inverter
power range:380V、5.5KW-630kw
  • 产品详情
  • 规格参数
  • 经典案例
  • 资料下载
First, the product introduction
   Product Name: Air compressor special inverter
   Product brand: Weiken
   Voltage level: three-phase 380V

Second, the product description
The special inverter for air compressor is mainly used for energy-saving transformation of air compressors, central air conditioners, vacuum pumps, industrial vacuum cleaners, etc. represented by gas and liquid adjustment, and the power saving effect can reach 30%-70%.


Third, the characteristics of the special inverter for air compressor
1. Our special compressor for air compressor adopts the most advanced vector control technology.
2. The special inverter for air compressor can automatically save energy and maximize the power saving rate.
3. The special inverter for air compressor has automatic voltage regulation function to keep the voltage stable to the utmost.
4. The special inverter for air compressor has automatic over-current and over-voltage detection protection to protect customer equipment and inverter to the utmost.
5. The special inverter for air compressor can automatically detect the load function.
6. The special inverter for air compressor has full-frequency high torque output and fast response, and excellent load adaptability.
7, with automatic reset, power-down reset function to ensure continuous production and production efficiency.
8. Built-in PID regulator, when implementing constant pressure and constant temperature control, it can easily realize closed-loop system control of process quantities such as temperature, pressure and flow.
9. Our company promises to purchase the special inverter of our air compressor for 12 months nationwide warranty for lifelong maintenance.

Fourth, matters needing attention
1. The selection of the inverter for the air compressor needs to be selected according to the load. When the output pressure of the air compressor is greater than 8 kg, it is necessary to enlarge the primary power selection;
2, air compressor inverter supports remote pressure gauge and pressure sensor, you need to bring your own remote pressure gauge or pressure sensor;



3. The lower limit frequency of the special inverter for air compressor can't be set too low, generally set to 25-30Hz, otherwise there will be jitter when the air compressor is loaded.
 Or oil spills.
4. Remember that no valve components can be installed on the pipeline between the pressure sensor and the air compressor to prevent the filter from blocking.
 After the plug or valve is closed, there is a danger of explosion if the air compressor does not stop.

5. Please debug the installation with the knowledge of the technician.

Product name:Air compressor special inverter
Brand:Weiken
Series:9600 series
Model:WK9600-3T-00550K - WK9600-3T-00550K
Voltage level:380V
Power range:5.5kw-160kw
Application:Air compressor special inverter
